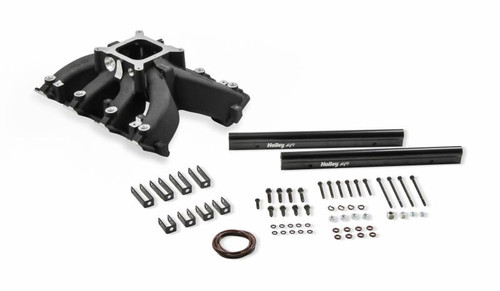

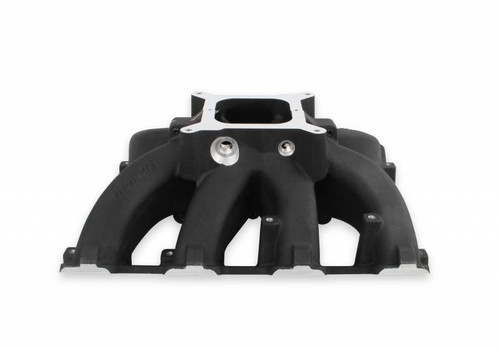

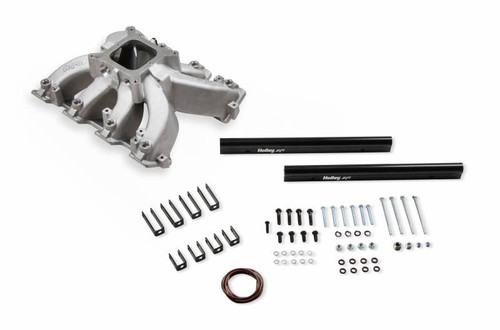

Holley 300-290 - Intake Manifold Ls3 Split Sgl-Plane Efi

Description

The new Holley Single-Plane Race intake manifold were designed with performance in mind. They feature a race bred, two piece split feature that was previously only found on the most expensive race intakes. The manifold will fit GM LS Gen III engines with LS3/L92 heads and are intended for 4150 style square bore flanged carburetors or throttle body EFI.

The LS Race single-plane intake manifold was designed for hi-performance/racing engine applications, 5.3 to 6.2+ liter displacement, and maximum engine speeds of 6000-7000 rpm, depending on the engine combination. This single-plane design provides optimal performance across the RPM spectrum while providing maximum performance up to 7000 rpm.

The Holley LS Race manifold incorporates a split feature, which allows disassembly of the intake for direct access to internal plenum and port surfaces, making custom porting and matching a snap. With shoulder bolt locators and O-ring seal, reassembly is simple and precise.

Technical Data:

- A-B Height - 7.20" (0° carb flange angle)

- Port Size- 2.59" Height x 1.28" Wide

- Throttle Body Flange - Standard 4150 for up to 1-3/4" diameter throttle bores

- As-Cast Runner Cross-Sectional Area - 4.5 in² at the runner entry tapered to 3.2 in² at the flange exit

Features:

• Maximum performance race design with hood clearance consideration
• Lighter than other split race intakes
• Split feature making porting efforts easy!
• 33 to 50% the price of other split race intakes
• Captured O-ring seals at head ports and split
• Vacuum Port options include (2) 1/8, (1) 1/4, and (1) 3/8, NPT ports at the carb flange
• Billet Fuel Rails and rail mounting hardware included.
