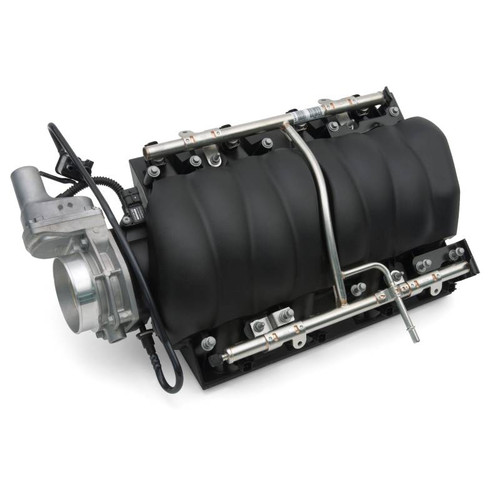

Edelbrock 7142 - Pro Flo LS3 Intake Manifold, Black

Description

Edelbrock part #7142 Pro Flo XT LS3 intake manifold is designed for use on GM LS3 engines. This manifold will accept late model LS Drive-By-Wire throttle bodies or Edelbrock 90mm mechanical throttle body and is offered in a black powder coat finish. This manifold is not intended to be a direct replacement for late model vehicle applications due to hood/cowl clearance and emissions incompatibility.

Uses LS3/ L92/L76 style individual port o-ring seals GM #19256623 or Edelbrock #7395.; Throttle body recommendations: Edelbrock #3869, #38693 or OEM drive-by-wire style.; Manifold Dimensions: A-9.28", B-9.68", C-17.40", D-3.02", E-15 Deg .; Port exit dimensions: 1.23" x 2.52".; Recommended Fuel Rail Kit Edelbrock #3648 Designed for use with standard injectors measure 2.50" from the o-ring center to o-ring enter. Compact injectors measure 1.50" from the o-ring center to o-ring enter. Ends are tapped for use with -8 AN fittings.
